Home Products Roofing Sheet Galvanized Roofing Sheet
In Stock
Roofing Sheet Product

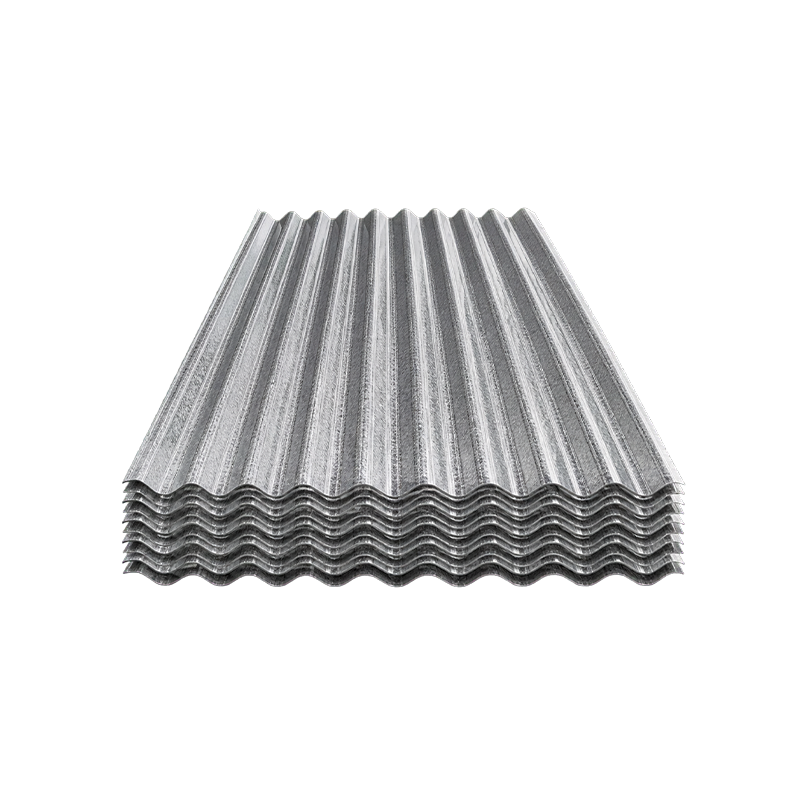

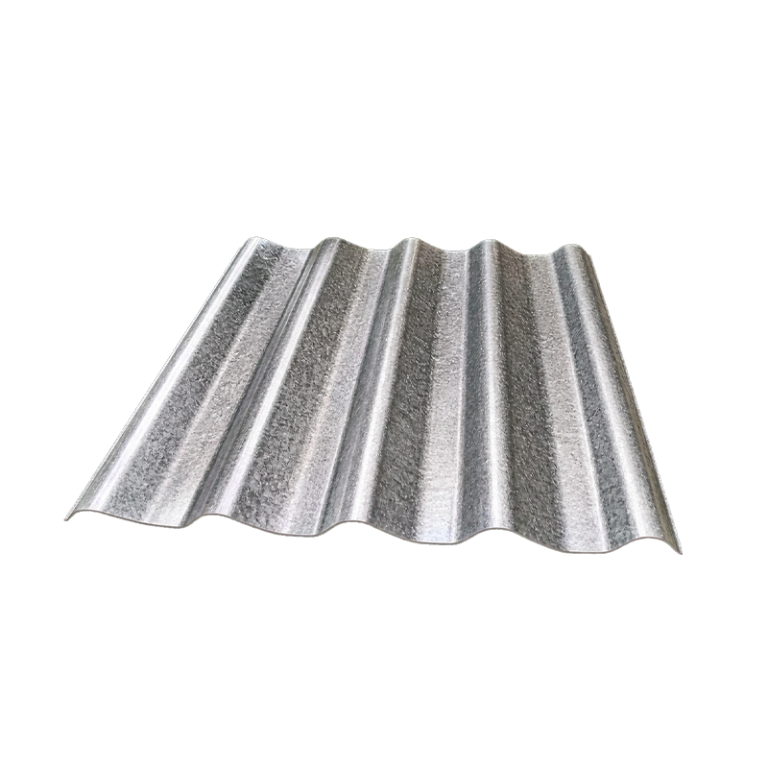

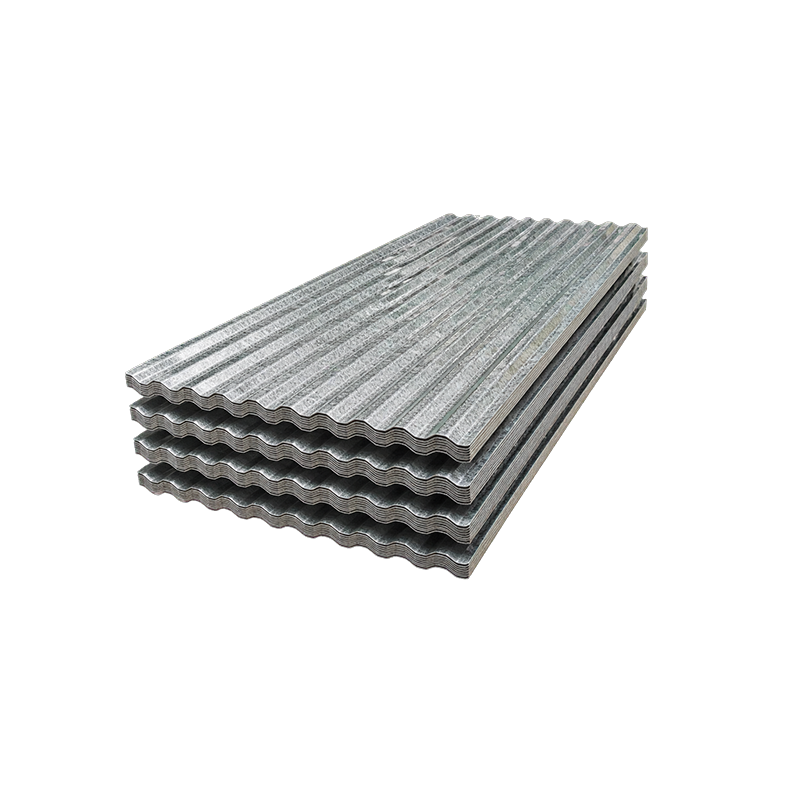

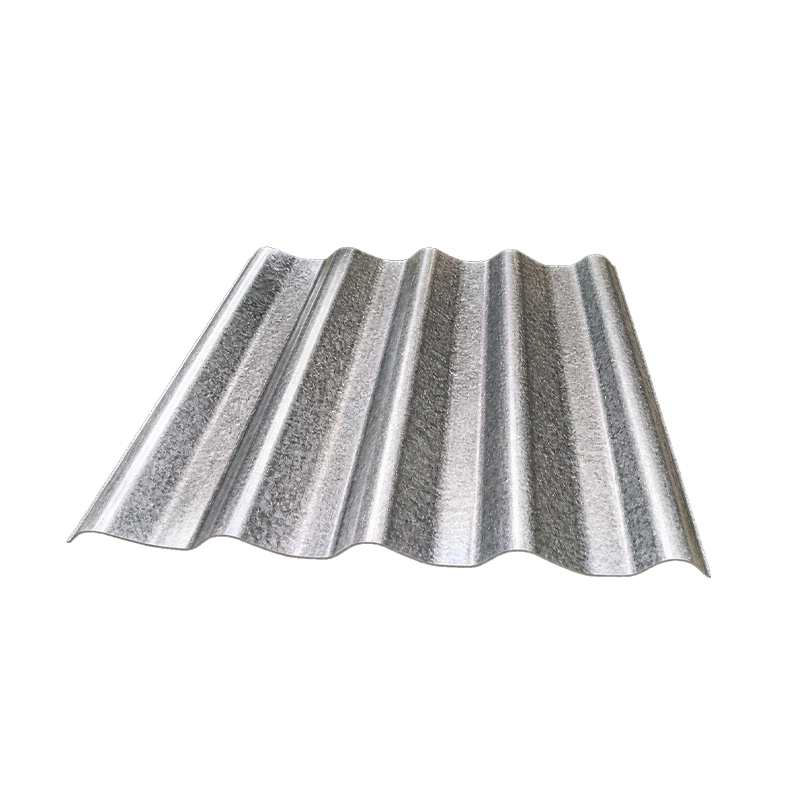

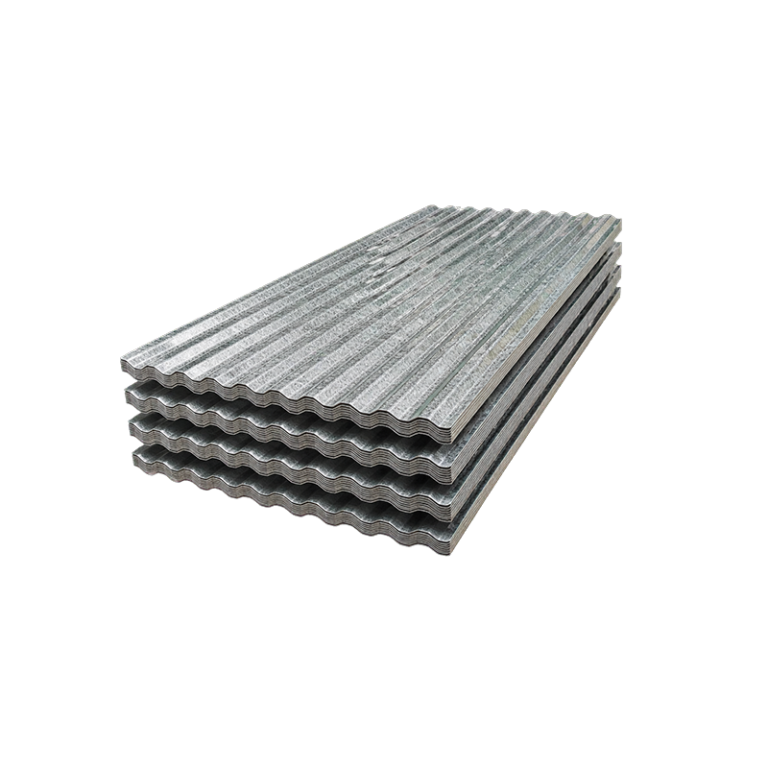

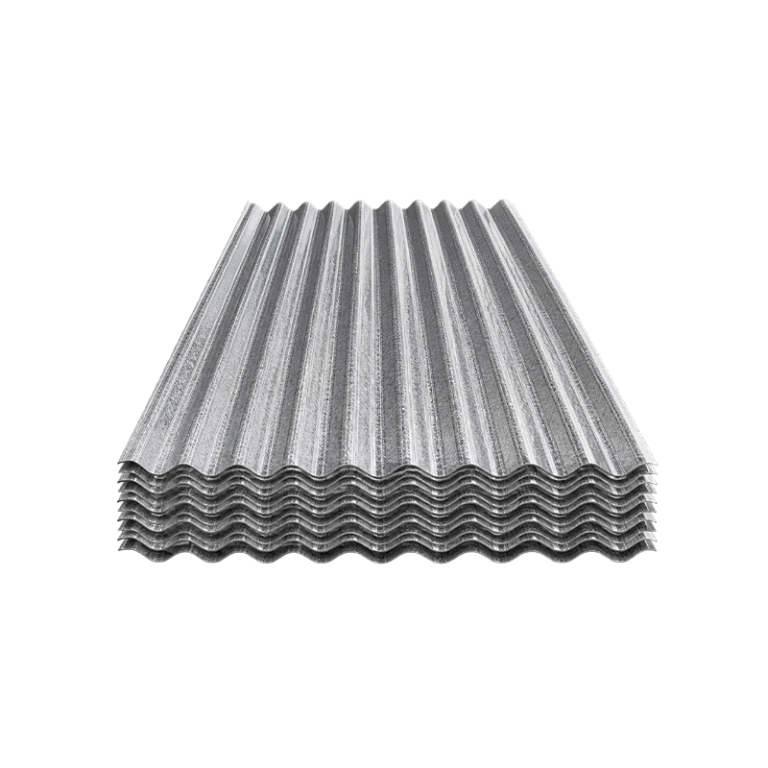

Galvanized Roofing Sheet

Designed for roofing and wall-cladding projects that require reliable corrosion protection, structural strength, and efficient installation. Available in multiple profiles, flexible dimensions, and export-ready bundles for residential, commercial, agricultural, and industrial buildings.

  • Base Metal

    Premium Cold Rolled Steel

  • Coating Type

    Hot-Dip Zinc Coating

  • Thickness

    0.1-5.00 mm

  • Profile Type

    Corrugated / Trapezoidal / Tile

  • Effective Width

    According to Profile

  • Zinc Coating

    Z15–Z275

  • Length

    Customized

  • MOQ

    16 MT (1×20' FCL)
REQUEST A QUOTE
Overview

Profiled for Reliable Roofing Protection

Galvanized Roofing Sheet combines a protective zinc coating with a profiled steel structure suitable for roofing and wall cladding. It provides reliable corrosion resistance, structural strength, and practical drainage performance for residential, commercial, agricultural, and industrial buildings.

Available in corrugated, trapezoidal, tile-effect, and customized profiles, with flexible thicknesses, lengths, zinc coating weights, and effective widths, Galvanized Roofing Sheet supports efficient installation and coordinated project sourcing across diverse building requirements.

Spec

Technical Specifications

Technical Data Sheet — Galvalume Steel
PDF, 2.4 MB · Updated March 2024
Download
Base Metal Premium Cold Rolled Steel
Steel Grade DX51D / DX52D / DX53D / SGCC
Standard ASTM / JIS / EN / GB
Thickness 0.1-5.00 mm
Raw Material Width 600–1250 mm
Zinc Coating Z15–Z275
Spangle Regular / Minimized / Zero
Profile Corrugated / Trapezoidal / Tile / Customized
Effective Width According to Profile Drawing
Length Customized
Surface Treatment Chromated / Oiled / Anti-Fingerprint
Tolerance ±1%
Processing Roll Forming / Cut-to-Length
Packing Standard Seaworthy Export Packing
APPLICATIONS & INDUSTRIES

Applications & Industries

Trusted by contractors, manufacturers, and distributors across a wide range of construction and industrial applications.

  • Roofing & Cladding
    Designed for residential, commercial, and industrial roofing systems where long-term corrosion resistance and weather protection are essential.
  • Industrial Buildings
    Widely used for factories, warehouses, logistics centers, workshops, and other steel structure projects requiring durable coated steel materials.
  • Agricultural Buildings
    Suitable for livestock houses, storage facilities, grain warehouses, greenhouses, and agricultural infrastructure exposed to harsh environments.
  • Manufacturing & Fabrication
    An ideal material for roll forming, profiling, equipment manufacturing, and customized steel processing applications.
  • Mill-Certified Quality

    Every batch is supplied with traceable production records and Mill Test Certificates.

  • Custom Specifications

    Flexible dimensions, coating options, colors, and packaging to meet different project requirements.

  • Reliable Delivery

    Production schedules and shipment planning help ensure stable lead times.

  • Global Export Experience

    Supporting customers in over 60 countries with export-ready logistics and documentation.

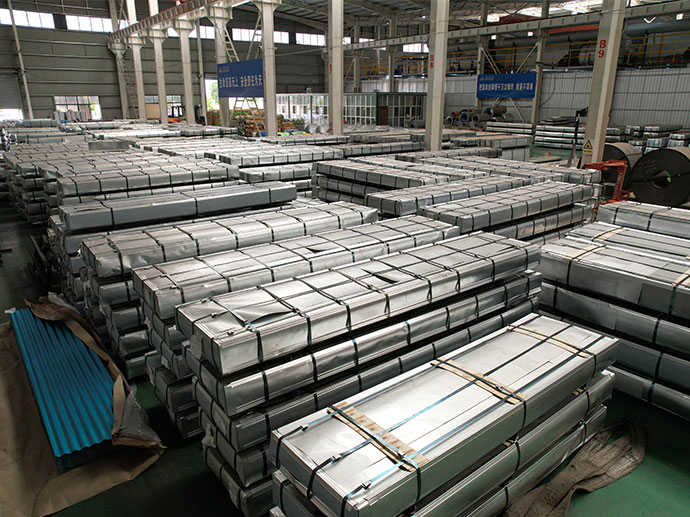

Export Packaging & Shipping

Five-Layer Protection for Steel Coil Shipments

Each steel coil is packed through a five-step protection process to reduce moisture exposure, edge damage, surface scratches, and movement during handling and international transportation.

  • Paper Edge Protection

    Paper edge protectors are applied around both sides of the coil to cushion the edges and reduce direct contact during the subsequent wrapping process.

  • Kraft Paper & Plastic Film Wrapping

    The coil is wrapped with kraft paper and plastic film to help protect the steel surface from moisture, dust, and contamination during storage and transportation.

  • Steel Sheet Outer Wrapping

    An external steel sheet layer is wrapped around the coil body to provide additional protection against impact, scratches, and mechanical damage during handling.

  • Side Plates & Steel Edge Protectors

    Steel side plates and reinforced edge protectors are installed on both ends of the coil to protect the coil faces, inner edges, and outer edges from deformation and impact.

  • Steel Strapping & Secure Fastening

    Steel straps and fastening seals are applied around the completed package to hold all protective layers firmly in place during lifting, loading, and transportation.

Documents

Technical Documents & Export Support

Essential product documentation is available to support technical evaluation, project approval, and international procurement requirements.

Get a Quote
  • Technical Data Sheet
  • Mill Test Certificate
  • Technical Support
